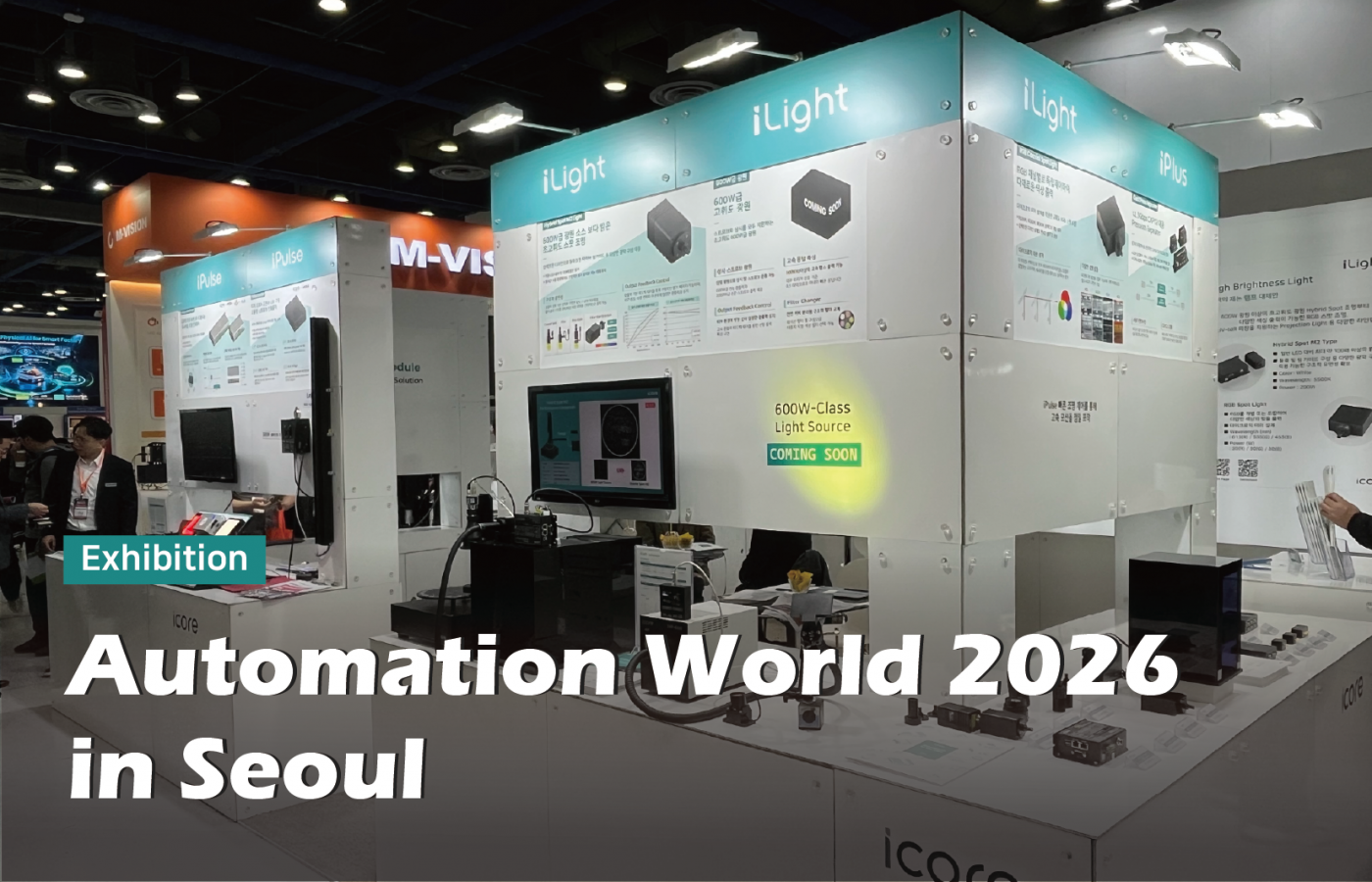

Automation World 2026



The AW 2026 exhibition has successfully come to an end.

We sincerely thank everyone who visited the our booth. ✋

We have summarized the key products and technologies showcased at our booth.

If you visited us at the exhibition, feel free to revisit the highlights.

If you couldn’t attend, this is a great opportunity to catch up on what you missed!

What is iCore’s Exhibition

[iFocus]

1. Based on a 10× Objective Lens Supporting an 82 mm Image Circle

      A triangulation-based autofocus solution designed for high magnification and high-resolution inspection.

A triangulation-based autofocus solution designed for high magnification and high-resolution inspection.

To overcome the limitation of the small image circle of conventional microscope lenses,

ICORE collaborated with the Korean optics company 'Siwon Optics' to develop an AF module using large-format microscope lenses.

This solution delivers stable inspection performance even in environments using TDI line-scan cameras and ultra-high-resolution cameras.

▯ Camera : 16K TDI LineScan Camera

▯ Lens : X10 Objective Lens (for 82mm Image Circle)

▯ Light : Hybrid Spot Light M1

▯ AF Sensor : IT-AF-MBK1 (for Large Format)



[iPulse]

5. One Controller for Multiple Lighting Brands

    No more compatibility issues between different lighting brands.

ICORE’s lighting controller uses a constant-current control method, ensuring high compatibility with a wide range of lighting systems.

▯ Strobe Controller : COM Series

▯ Light : Diverse Lighting Brand



6. Fast Trigger Response and Excellent Repeatability Verified by Oscilloscope

    No Bottlenecks with ICORE Lighting Controllers

iCore strobe controller achieves a trigger response time within 1 µs.

Using an oscilloscope, visitors can directly verify its fast response speed and highly stable repeatability.

▯ Strobe Controller : COM Series



7. High-Capacity Lighting Controller with 500 W Output per Channel

    A constant-current lighting controller capable of driving LEDs up to 200 A, enabling stable control of 1-meter line lights.

The iPulse 'A' Series supports high-capacity lighting control up to 200A and ultra-fast pulse control within 0.5 µs, offering a high-performance lineup for demanding inspection environments.

▯ Strobe Controller : IP-2P2S-200B

▯ Light : Leimac IDBC-LSR1000W-S



[iLight]

8. Hybrid Spot M2 vs. 600 W Light Source Comparison

    The Hybrid Spot M2 delivers brightness six times higher than a 600 W light source.

Its compact design allows integration into various optical structures such as : Coaxial lighting / Fiber optics / Ring guides

In this demo, a dark-field inspection setup combined with a ring guide was used to detect surface defects.

See how much brighter and clearer images can be obtained compared to a 600 W light source.

▯ Camera : 5M USB Mono Camera

▯ Lens : 0.27X Telecentric Lens

▯ iCore Light : Hybrid Spot M2

▯ Light Source : 600W Light Source

▯ Stage : 1,000mm/sec Turntable

▯ Duration : 2us

9. 600 W Light Source Optimized for Line-Scan Inspection

     Light Source Supporting Continuous and High-Power Strobe Lighting

A 600 W light source designed for stable illumination in environments with high duty cycles, such as line-scan inspection.

It supports both continuous lighting and high-power strobe operation.

This new product will be available soon.

▯ iCore's 600W Light Source

10. High-Brightness RGB Spot Light with Dichroic Mirror Optics

        RGB lighting solution that enables various color combinations.

Each RGB channel can be controlled independently or combined to produce a wide range of colors.

This makes it possible to generate intermediate colors such as orange, which are difficult to achieve with conventional LED lighting.

As a result, optimal lighting conditions can be configured according to the characteristics of the inspection target.

▯ Light : RGB Spot Light Coaxial

▯ Strobe Controller : IP-4P4S-20A



Once again, we would like to thank everyone who visited the our booth.

You can experience the atmosphere of the exhibition in our booth highlight video below.

If you have any questions, please feel free to contact us through the 'Inquiry button below'. ????
